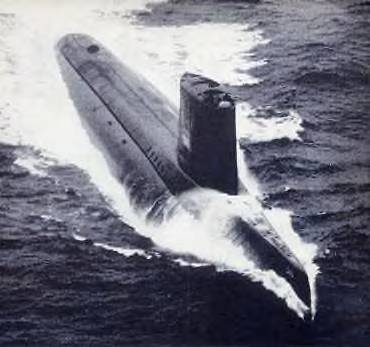

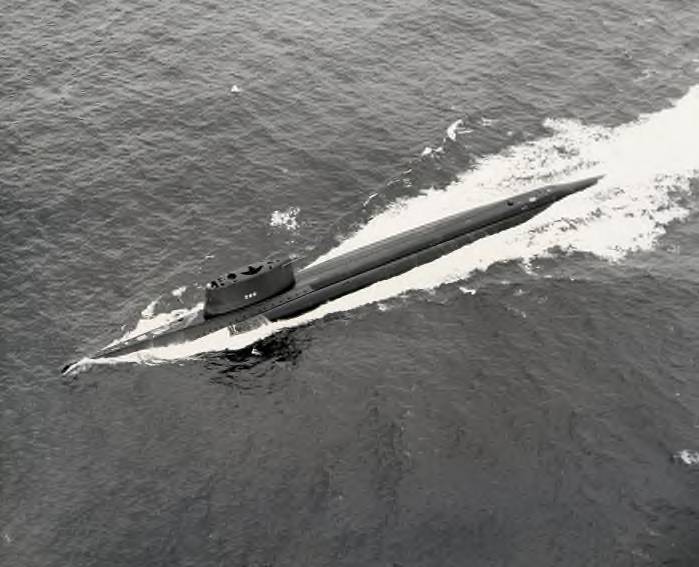

USS Triton SSRN-586 (1959-United
States) from Wikipedia
Nuclear power offered the only possible solution. Triton was designed in the mid-1950s as a radar picket submarine capable of operating at high speed, on the surface, in advance of an aircraft carrier task force. Triton's high speed came from her twin-reactor nuclear propulsion plant, with a designed speed, surfaced and submerged, of 28 kn (32 mph; 52 km/h). On 27 September 1959, Triton achieved "well in excess of" 30 kn (35 mph; 56 km/h) during her initial sea trials. Triton was the only non-Soviet submarine designed with a two-reactor propulsion plant. Her S4G reactors were seagoing versions of the land-based S3G reactor prototype. Both reactors comprised the Submarine Advanced Reactor (SAR) program, a joint venture between the U.S. Navy, Atomic Energy Commission (AEC), and General Electric. As originally designed, Triton's total reactor output was rated at 34,000 horsepower (25,000 kW). However, Triton achieved 45,000 horsepower (34,000 kW) during her sea trials, and her first commanding officer, Captain Edward L. Beach, Jr., believed Triton's plant could have reached 60,000 horsepower (45,000 kW) "had that been necessary."
To meet her radar picket role, Triton's main air search radar initially used the AN/SPS-26, the U.S. Navy's first electronically scanned, three-dimensional search radar which was laboratory tested in 1953. The first set was installed on board the destroyer leader Norfolk prior to its installation on board Triton in 1959. Since it was scanned electronically in elevation, the AN/SPS-26 set did not need a separate height-finding radar. A submarine version of SPS-26, designated BPS-10, was under development, and it was slated for installation on Triton. To process its radar, electronic, and air traffic data, Triton had a Combat Information Center (CIC) located in a separate air control compartment, situated between Triton's reactor and operations compartments.
Triton was to be the lead ship of a proposed class of nuclear-powered radar picket submarines. A December 1955 long-range naval planning report envisioned five carrier strike groups, each supported by two radar picket submarines. The total force included two non-nuclear Sailfish class submarines and eight nuclear submarines. With construction costs for Triton escalating, this long-range requirement was revised in 1957 to provide four nuclear-powered radar picket submarines for a single nuclear-powered carrier group, with the four remaining conventionally powered carrier groups supported by two diesel-electric radar picket submarines each.
Combat systems overview Triton's main air search radar was the AN/SPS-26 electronically scanned, three-dimensional (3-D) radar system. The SPS-26 had a range of 65 nautical miles (120 km; 75 mi), and it was capable of tracking aircraft up to an altitude of 75,000 feet (23,000 m). Since it scanned electronically in elevation, it did not need a separate height-finding radar system. When not in use, the SPS-26 radar was lowered into its fairwater housing for stowage within Triton's massive sail. A submarine version of SPS-26, designated BPS-10, was under development at the time of Triton's construction, and it was slated for eventual installation on Triton. Triton's active/passive sonar detecting-ranging set was the AN/BQS-4, which had a listening range up to 20 nautical miles (37 km; 23 mi) for surfaced or snorkeling submarines, optimized to 35 nautical miles (65 km; 40 mi) with target tracking capability within 5 degrees of accuracy. The hull-mounted passive sonar AN/BQR-2 array supplemented the BQS-4 system, with a range up to 10 nautical miles (19 km; 12 mi) and a bearing accuracy of 1/10 of degree, allowing the BQR-2 to be used for fire control in torpedo attacks. Triton's target fire-control system (TFCS) was the Mark 101, a post-war development that incorporated target tracking and ranging data into a position keeper, with a pair of analyzers that automatically revised torpedo gyros and settings as the target position changed. This automation greatly simplified a targeting solution for a plotting party. Previously targeting solutions were manually estimated target bearings and then feed them into the Torpedo Data Computer (TDC) system initially introduced in fleet submarines prior to World War II. However, while entirely capable of providing efficient fire control solutions against post-war non-nuclear hunter-killer submarines, the Mark 101 proved to be less responsive to the rapid changes associated with nuclear submarine operations. Triton's torpedo system consisted of six Mark 60 torpedo tubes, four bow and two stern. The Mark 60 system was a 249.8-inch (6,340 mm)-long hydraulic-launch tube that did not have power handling capability. The standard torpedo carried by Triton was the Mark 37, with a weapon load of ten forward and five aft. Triton's first commanding officer, "Ned" Beach, noted the torpedo load in the forward torpedo room could have been doubled with the removal of a single support girder. The Number One periscope was Triton's navigational periscope, and it had a built-in sextant developed by the Kollmorgen Optical Company that allowed navigators to observe celestial bodies to order to obtain an accurate star fix to plot the ship's course and position. Construction history
Even before her launch, there was considerable discussion of Triton's role beyond her radar picket mission. An internal Navy memorandum set forth four options for the submarine's extended use. These included configuration to serve as a command ship (SSCN) for a fleet or force commander, an advanced sonar scout for the fleet, a Regulus missile submarine (SSGN), or a minelaying submarine. However, with the exception of the command ship option, all of these proposed configurations required extensive modification to her original design. Another potential mission was as an underwater tug, able to rescue disabled submarines under the Arctic ice pack. Triton's first commanding officer, Captain Edward L. Beach, requested plans be drawn up for this modification, which he characterized as "easy and inexpensive". Although there was consideration for a deployment to Arctic waters, there is no evidence that Triton was ever employed as an underwater tug. Triton was launched on 19 August 1958, with Louise Willis, the wife of Vice Admiral John Wills USN (ret.), as her sponsor. The principal address was delivered by Admiral Jerauld Wright, the Commander-in-Chief of the U.S. Atlantic Command (CINCLANT), the Commander-in-Chief of the U.S. Atlantic Fleet (CINCLANTFLT) and Supreme Allied Commander Atlantic (SACLANT) for NATO. Over 35,000 guests attended, the largest crowd to witness a submarine launching up to that time. On 1 February 1959, Triton was provisionally accepted for service in the U.S. Navy, with Captain Beach, the Prospective Commanding Officer (PCO), now designated as Officer-in-Charge. Triton met several key milestones before her commissioning. On 8 February 1959, reactor No. 2 achieved initial criticality, while reactor No 1 achieved this milestone on 3 April 1959. Two shipboard accidents occurred during Triton's post-launch fitting-out. On 2 October 1958, prior to the nuclear reactor fuel being installed, a steam valve failed during testing, causing a large cloud of steam that filled the number two reactor compartment, and on 7 April 1959, a fire broke out during the testing of a deep-fat fryer and spread from the galley into the ventilation lines of the crew's mess. Both incidents, neither nuclear related, were quickly handled by ship personnel, with Lt. Commander Leslie B. Kelly, the prospective chief engineering officer, being awarded the Navy and Marine Corps Medal for his quick action during the incident on 2 October. Triton began her sea trials on 27 September 1959. Over the next five days, the ship's systems and equipment were thoroughly tested under the overall direction of Hyman G. Rickover of the Bureau of Ships' Naval Reactors branch and Captain A. C. Smith, the Supervisor of Shipbuilding at Electric Boat. Triton generated 45,000 horsepower (34,000 kW) on sea trials, reaching her design surface speed of 27 knots (50 km/h; 31 mph), and achieved a surface speed well in excess of 30 knots (56 km/h; 35 mph). Triton subsequently executed a four-hour, full-power submerged run and a crash-back maneuver. The only significant problem encountered during her initial sea trials was the overheating of the lubricating oil system for the starboard propshaft spring bearing. At the recommendation of Admiral Rickover, a hose was rigged to spray the bearing housing with a steady stream of sea water to keep the shaft cool, as well as a special watch set to monitor the temperature of the lube oil. Triton began her preliminary acceptance trials (PAT) on 20 September 1959. These trials were conducted under the supervision of Rear Admiral Francis Douglas McCorkle of the U.S. Navy's Board of Inspection and Survey (INSURV). After three days of at-sea tests, Triton was passed by the INSURV as being ready to enter service as a U.S. naval vessel. Operational history Triton was commissioned on 10 November 1959 with Captain Edward L. Beach, Jr. in command. Vice Admiral Bernard L. Austin, the Deputy CNO for Plans and Policy, made the keynote address, noting:
Triton was assigned to Submarine Squadron 10, the U.S. Navy's first all-nuclear force, based at the U.S. Submarine Base in New London, Connecticut, under the command of Commodore Tom Henry. Triton subsequently completed torpedo trials at Naval Station Newport and conducted other special tests at the Norfolk Navy Base before returning to Electric Boat on 7 December 1959 in order to install special communications equipment, including a prototype of the BRA-3 towed communications buoy system housed in a large fairing located on the after end of the main deck. Work on Triton at Electric Boat was delayed as priority was given to completing the Navy's first two fleet ballistic missile (FBM) submarines, George Washington and Patrick Henry, with the objective for both vessels to start their first nuclear deterrence patrols before the end of 1960. On 20 January 1960, Triton got underway to conduct an accelerated series of at-sea testing. Triton returned on 1 February as preparations continued for her forthcoming shakedown cruise, scheduled for departure on 16 February 1960, which involved operating with the command ship Northampton, flagship of the U.S. Second Fleet, in northern European waters. On 1 February, Captain Beach received a message from Rear Admiral Lawrence R. "Dan" Daspit (COMSUBLANT) instructing Beach to attend a top secret meeting at The Pentagon on 4 February 1960 that led to the execution of Operation Sandblast, the first submerged circumnavigation of the world. Shakedown cruise During her shakedown cruise, Triton successfully executed the first submerged circumnavigation of the world, code named Operation Sandblast, following the same track as the first circumnavigation led by Ferdinand Magellan, as summarized by Dictionary of American Naval Fighting Ships:
The New York Times described Triton's submerged circumnavigation of the world as "a triumph of human prowess and engineering skill, a feat which the United States Navy can rank as one of its bright victories in man's ultimate conquest of the seas." Initial deployments Following her post-shakedown availability (PSA), Triton assumed her duties as a radar picket submarine in August 1960. She deployed to northern European waters with the Second Fleet to participate in NATO exercises oriented around detecting and intercepting Soviet bombers overflying the Arctic. Triton also participated in NATO exercises against British naval forces led by the aircraft carriers Ark Royal and Hermes under the command of Rear Admiral Sir Charles Madden, RN. For two days during these NATO exercises, Rear Admiral Thomas H. Moorer and his flag lieutenant, Lt. William P. Lawrence, were aboard Triton to observe its submarine radar-picket operations. At the time, Moorer was serving as Commander Carrier Division Six which included the carriers Essex and Saratoga. Triton completed its first overseas deployment with a port visit to Bremerhaven, West Germany, the first by a nuclear-powered ship to a European port, from 2-9 October 1960, with an estimated 8,000 touring the boat during this port-call. For the first half of 1961, Triton conducted operational patrols and training exercises with the Atlantic Fleet. This included an at-sea exercise involving low-power testing in support of the development of a proposed natural circulation reactor (NCR). She also deployed to monitor the Soviet 50-megaton hydrogen bomb initiation at Novaya Zemlya in the Arctic Ocean during late October 1961. During this period, the rising threat posed by Soviet submarine forces increased the Navy's demands for nuclear-powered attack submarines with antisubmarine warfare (ASW) capability. Following the development of the carrier-based Grumman WF-2 Tracer airborne early warning aircraft, Triton's AN/SPS-26 3-D long-range air search radar was no longer needed, and the development of the submarine version of this 3-D radar system, the BPS-10, was canceled in 1960. Accordingly, upon the demise of the Navy's radar picket submarine program, Triton was redesignated SSN-586 on 1 March 1961. Overhaul and conversion Triton entered the Portsmouth Naval Shipyard in June 1962 for conversion to an attack submarine. Her crew complement was reduced from 172 to 159. She was overhauled and refueled at Groton, Connecticut, from September 1962 to January 1964, which included modification to serve as the flagship for COMSUBLANT. Since the Navy no longer had any plans to use Triton's radar picket capability, her SPS-26 radar set was replaced by a two-dimensional AN/BPS-2 air search radar, with Triton now providing the fleet with an at-sea air strike control capability. Because she subsequently served as COMSUBLANT's flagship following her overhaul, one area of continuing speculation is whether Triton was part of the National Emergency Command Post Afloat (NECPA) program. NECPA was tasked to provide afloat facilities for the President of the United States in case of an emergency or war, with the command cruisers Northampton and Wright assigned to perform this mission. Triton had a number of attributes that made her a potential NECPA platform. Her size allowed ample room for additional shipboard systems and accommodations. Her designed speed provided the capability for rapid transit, and her nuclear power plant offered virtually unlimited endurance and range. The Combat Information Center (CIC) provided substantial command and control capabilities as did the communication buoy system that could receive and send radio transmissions while submerged. As she was a submarine, Triton offered superior protection against nuclear-biological-chemical (NBC) contaminants over surface ships or airborne command centre. However, the record remains unclear if such an explicit conversion was ever undertaken. Subsequent operations In March 1964, upon completion of her overhaul, Triton's home port was changed from New London, to Norfolk. On 13 April 1964, she became the flagship for COMSUBLANT. In January 1965, Triton rescued the pilot and a passenger of a charter aircraft that had ditched in the Atlantic Ocean off St. Croix in the Virgin Islands. Triton was relieved as COMSUBLANT's flagship by the Sturgeon-class submarine Ray on 1 June 1967. Eleven days later, Triton was shifted to her original home port of New London, Connecticut. Commanding officers Edward L. Beach, Jr.: November
1959 - July 1961
Decommissioning and final disposition Due to cutbacks in defense spending, as well as the expense of operating her twin nuclear reactors, Triton's scheduled 1967 overhaul was canceled, and the submarine--along with 60 other vessels--was slated for inactivation. While Triton's twin reactor plant was designed to be refueled by a submarine tender like other U.S. nuclear submarines, because of the complexity of her zirconium-clad fuel elements, Triton's previous re-fueling had been done in a shipyard during her 1962-1964 overhaul. Although new fuel elements were procured and available for installation, Triton's overhaul was canceled, a source of controversy. One speculation suggests that the cancellation of Triton's overhaul allowed funds to be redirected for the repairs to the supercarrier Forrestal which had been extensively damaged off Vietnam. From October 1968 through May 1969, she underwent preservation and deactivation processes, and she was decommissioned on 3 May 1969. Triton became the U.S. Navy's first nuclear-powered submarine to be taken out of service, and second in the world, after the Soviet Navy's November-class submarine K-27 in 1968. On 6 May 1969, Triton departed New London under tow and proceeded to Norfolk, Virginia, where she was placed in the reserve fleet. She remained berthed at Norfolk or at the St. Julien's Creek Annex of Norfolk Naval Shipyard in Portsmouth, Virginia, into 1993. She was stricken from the Naval Vessel Registry on 30 April 1986. In August 1993, the hulks of the ex-Triton and the ex-Ray were towed by the salvage tug Bolster to the Puget Sound Naval Shipyard (PSNS), in Bremerton, Washington, arriving on 3 September 1993, to await their turn in the Nuclear Powered Ship and Submarine Recycling Program (SRP). Effective 1 October 2007, ex-Triton landed on the keel resting blocks in the drydock basin to begin recycling. The long delay in the disposal of ex-Triton has been attributed to the complexity of her dual reactor plant. Final recycling was completed effective 30 November 2009. Legacy
Duplicates of the Triton Plaque were also presented to the Mystic Seaport Museum in Mystic, Connecticut, and the Naval Historical Association in Washington, D.C., as well as the U.S. Navy Submarine School and the U.S. Navy Submarine Force Library and Museum, both located in Groton, Connecticut. Triton memorials Triton Light is a navigational beacon on the seawall of the United States Naval Academy in Annapolis, Maryland, where the Severn River meets Spa Creek and the Annapolis harbor. It was donated to the Academy and named for the Greek god by the United States Naval Academy Class of 1945. The crew of Triton provided samples of water taken from the 22 seas through which their ship had passed during their submerged 1960 circumnavigation. These samples filled a globe built into the Triton Light, and the naming of the light and significance of the globe are explained in a commemorative marker. Beach Hall is the new headquarters for the United States Naval Institute which was dedicated on 21 April 1999 . The facility is named after Captain Edward L. Beach, Sr., who served as the Institutes secretary-treasurer, and his son, Edward L. Beach, Jr., who commanded Triton during Operation Sandblast. The dive wheel from Triton's conning tower is on display in the lobby of Beach Hall. Triton was the 2003 inductee into the Submarine Hall of Fame following her nomination by the Tidewater chapter and Hampton Roads Base of the United States Submarine Veterans, Inc. (USSVI). A shadow box filled with Triton memorabilia was placed in Alcorn Auditorium of Ramage Hall located at the U.S. Navy Submarine Learning Center, Naval Station Norfolk. USS Triton Recruit Barracks (Ship 12) was dedicated in ceremonies at the U.S. Navy's Recruit Training Command, Naval Station Great Lakes, near North Chicago, Illinois, on 25 June 2004. The facility honors the memory of two submarines named Triton and includes memorabilia from both. Triton Hall is the fifth barracks constructed under the RTC Recapitalization Project, covering 172,000 square feet (15,979 square meters) in floor space. The facility is designed to accommodate 1056 recruits, and it includes berthing, classrooms, learning resource centers, a galley, a quarterdeck, and a modern HVAC system. On 17 May 2012, in a dedication ceremony, the long-missing ship's bell was added to the collection of artifacts in Triton Hall's quarterdeck. The USS Triton Submarine Memorial Park is located on the Columbia River, at the end of Port of Benton Boulevard in north Richland, Washington. Its purpose is "to establish a permanent park in north Richland in recognition of all the decommissioned reactor cores off-loaded at the Port's barge slip, transported and stored at the Hanford Site." The park features Triton's sail superstructure and an information display on the history of Triton. The park also serves as a tourist attraction, especially due to its location, since Hanford is the resting place of spent reactor cores from several Navy ships. Planning called for the sail will to be cut up for transport and re-assembly at the park site. Ground-breaking was initially scheduled to take place on 3 April 2008, with the dedication ceremony set for 19 August 2008 and a Fall 2009 start-date for construction. On 23 October 2009, the Port of Benton encased Triton's conning tower in concrete at its new USS Triton Submarine Memorial Park in north Richland, Washington. In mid-December 2009, the final pieces of Triton's sail were welded together at the park's site. During 11 August 2010 Port of Benton commission meeting, it was reported that bids for the first phase, which includes the park's electrical lighting system and the pouring the concrete around Triton's sail, would be announced shortly by the port authority. The second phase would involve the park's landscaping, and the third phase would be the installation of a parking lot. The park is part of the Richland Riverfront Trail, a marked hiking trail that focuses on the state of Washington's contribution to the nuclear history of the United States, and it connects to the Sacagawea Heritage Trail. The USS Triton Submarine Memorial Park is located off George Washington Way near the Columbia River, and it was formally dedicated on 10 November 2011, the 52bd anniversary of the commissioning of the USS Triton. In 2011, the USS Triton, Operation Sandblast, and Captain Edward L. Beach, Jr., were included in the Technology for the Nuclear Age: Nuclear Propulsion display for the Cold War exhibit at the U.S. Navy Museum in Washington, DC. Cultural references Triton is referenced briefly in three popular Cold War novels. In The Last Mayday by Keith Wheeler (1968), Triton is depicted as participating in a submarine training exercise at the beginning of the novel, with special notice made of her large, rectangular sail. In the 1978 novel Cold is the Sea by Edward L. Beach, the second sequel to his 1955 best-seller Run Silent, Run Deep, Triton is mentioned several times; Also, the under-ice towing capability that was considered for Triton served as a key plot point for the novel. Finally, in The Hunt for Red October by Tom Clancy, the biographical background for Marko Ramius mentions that, while commanding a Charlie-class submarine, Ramius had "hounded [Triton] mercilessly for twelve hours" in the Norwegian Sea. Subsequently, Ramius "would note with no small satisfaction that the Triton was soon thereafter retired, because, it was said, the oversized vessel had proven unable to deal with the newer Soviet designs." Two films of the period, Voyage to the Bottom of the Sea and Around the World Under the Sea, dramatized globe-circling submerged voyages similar to Operation Sandblast. Also, in the teaser of the episode "Mutiny" of the Voyage to the Bottom of the Sea television series, broadcast on 11 January 1965, the fictional nuclear submarine Neptune is on her shakedown cruise, under the supervision of Admiral Harriman Nelson (Richard Basehart), and when the submarine's port shaft bearing begins overheating, Admiral Nelson orders a hose be rigged to cool the port shaft down with sea water, the same solution Admiral Rickover had suggested during Triton's sea trials. The Button-Down Mind of Bob Newhart comedy album included a sketch entitled "The Cruise of the U.S.S. Codfish" which was a monologue involving the final address by the captain to the crew of a nuclear-powered submarine after completing a two-year-long, around-the-world underwater voyage. Bob Newhart noted in a 2006 interview that:
50th anniversary of Operation Sandblast The 50th anniversary of Operation Sandblast and Triton's submerged circumnavigation of the world was celebrated on 10 April 2010, during the 2010 Submarine Birthday Ball held at the Foxwoods Resort Casino in Mashantuket, Connecticut, with Master Chief Petty Officer of the Navy (MCPON) Rick D. West delivering opening remarks (pictured) to the 2,200 attendees. The U.S. Navy Submarine Force Library and Museum sponsored additional events and activities, entitled "9,000 Leagues Under the Sea," between 10-12 April and 14-18 April 2010. Also, on 9 April 2010, retired Admiral Henry G. Chiles, Jr., who served in Triton from 1963-1966, was the keynote speaker at the graduation class of the Basic Enlisted Submarine School at the New London Naval Submarine Base in Groton, Connecticut. The graduation class was named in honor of Triton, and each graduate received a certificate of course completion and a commemorative coin celebrating the 50th anniversary of Triton's submerged circumnavigation. The Dolphin Scholarship Foundation used the 50th anniversary of Operation Sandblast to promote its Race Around the World fund-raising program to support its Dolphin Scholarship program. Finally, former members of Triton's crew received commemorative souvenirs of the ship's pressure hull at their 2010 re-union. For the 50th anniversary of Operation Sandblast (see below), writer-historian Carl LaVO wrote "Incredible Voyage" for the June 2010 edition of Naval History magazine, and John Beach wrote "The First Submerged Circumnavigation" for the April 1960 issue of The Submarine Review, the official magazine of the Naval Submarine League. Mr. Beach is the nephew of Captain Edward L. Beach, the commanding officer of the USS Triton during Operation Sandblast. Finally, the Naval Institute Press published Beneath the Waves by Dr. Edward F. Finch, a 2010 biography of the late Captain Beach, which includes extensive coverage of Operation Sandblast. The legacy of Operation Sandblast on its 50th anniversary was summarized by retired Captain James C. Hay who had served on Triton during its historic submerged around-the-world voyage. On the editorial page of the April 1960 issue of The Submarine Review, the official magazine of the Naval Submarine League, Captain Hay noted:
|
