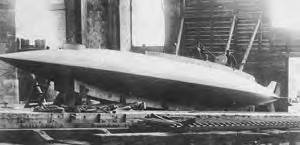

Gymnote (Q1) French submarine from
Wikipedia
Control gear The boat was designed to operate underwater with a small positive buoyancy, so that without power and rudders driving it downwards it would tend to float to the surface. There were three ballast tanks, one in the centre and one either end. water could be ejected either using compressed air or electrical pumps. Continuous adjustment was needed during a dive. It was originally equipped only with a stern rudder, which gave poor control. At speeds greater than six knots the boat would become unstable. At this speed the boat would be angled down 3-5 to maintain depth, so that the bow would be 1.5 m (5 ft) lower than the stern. Further rudders were added at the centre of the boat in 1893, which as well as improving stability meant that she remained more level as it dived. Motor The original sixteen pole electric motor designed by Captain Krebs to develop 55 hp at 200V and 200A was constructed at the Societe des Forges et Chantiers at Le Havre, was 1 metre in diameter and weighed 2 tonnes. It was connected directly to the propellor which rotated at 250 rpm. The motor was fitted with two sets of brushes, one for forward and one reverse motion. Once installed it was found that the rear bearing was inaccessible and could not be repaired with the motor installed. It was difficult to inspect the armature or repair damage to the insulation. The motor was not designed to come to an immediate halt when power was disconnected, but instead would freewheel to a halt relatively slowly. Reverse power could not be applied until it had stopped moving, so it was not possible to immediately reverse the propeller in case of emergency. The motor proved so problematic that it was replaced with a smaller but more powerful Sautter-Harlé motor. Batteries The boat was originally fitted with 540 Lalande-Chaperon alkaline cells which used Zinc and copper oxide electrodes with potassium hydroxide electrolyte, manufactured by Coumelin, Desmazures et Baillache. These were located towards the bow of the ship arranged into six banks of 45 parallel paired cells connected in series. To vary the speed, banks could be connected in different combinations, 6 banks in series giving 150 Volts and 8 knots, 3 banks in series in parallel with the other 3 in series giving 114V and 7 knots, 2 banks in series paralleled 3 times giving 84 V and 5.5 knots, all 6 banks in parallel giving 45V and 6 knots. A bank was capable of delivering a maximum of 166 Amps. The whole array weighed eleven tons. A new battery was installed in 1891 using a Laurent-Cely sulphuric acid design having 205 individual 30 kg assemblies of five plates each. Again these were arranged into six banks, now each having 17 parallel pairs of batteries connected in series. At 8 knots range was 32 miles, at 4 knots 100 miles. Another battery was installed in 1897. Hull The hull was made of 6 mm steel at the centre, tapering to 4mm at either end with a circular cross section. Internally it was coated with coal tar to provide protection from spilled battery acid. The hull was supported by 31 circular frames with additional longitudinal bracing. Navigation equipment The boat was fitted with a periscope, but this
proved unsatisfactory and its use was abandoned. Diving was delayed by
the need to fix or stow the periscope and water seals proved to be unreliable
and on a couple of occasions led to dangerous flooding. A small conning
tower was added in 1898. The boats had a compass and gyroscope although
these were not entirely reliable. The ship was equipped with two 14 in
torpedo tubes.
|
