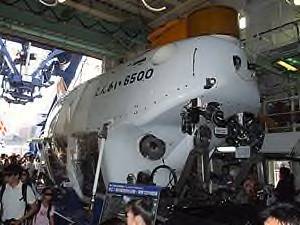

The Shinkai 6500 is a manned research submersible
that can dive up to a depth of 6,500 m. It was completed in 1990 and until
2012 it had the greatest depth range of any manned research vehicle in
the world. The Shinkai 6500 is owned and run by the Japan Agency for Marine-Earth
Science and Technology (JAMSTEC) and it is launched from the support vessel
Yokosuka.
Two pilots and one researcher operate within a
73.5 mm thick titanium pressure hull with an internal diameter of 2.0 m.
Buoyancy is provided by syntactic foam.
Three 14 cm methacrylate resin view ports are
arranged at the front and on each side of the vehicle.
A Lego set based on the submersible was created
through the Lego Cuusoo website. |
Name: |
Shinkai 6500 |
Complement: |
3 |
Length: |
9.5 m (31 ft) |
Beam: |
2,7 m (8.9 ft) |
Propulsion: |
Electric motor |
Speed: |
2.5 knot |
Endurance: |
129 hours |
Test depth: |
6,5000 m (21,300 ft) |
|
|
