Knockdown  Model 1      by Cliff Hanger                  back to Photos

    Knockdown Base

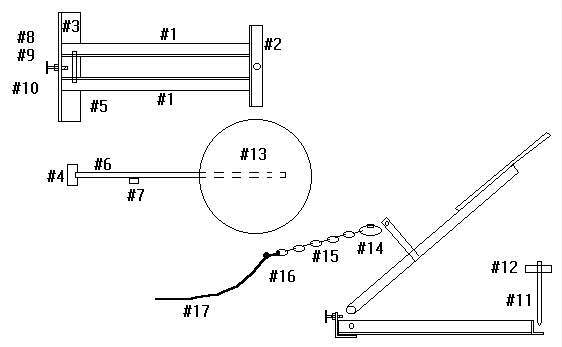

1.  2 - 3/16" x 2" x 24"       angle iron           3" apart at both ends
2.  1 - 3/16" x 2" x 12"       angle iron
3.  1 - 1/4" x 1 1/2" x 16"    angle iron

      Target Assembly
4.  1 - 3/4" x 3"               pipe
5.  1 - 3/4" x 4"               round rod  for hinge  hiinge is 1" back from front and 3/4" up from bottom
6.  1 - 1/2" x 1" x 24"        flat bar
7.  1 - 3/8" x 1" x 7"         flat bar              part #7 is 10" from part #4

      Fall Adjustment Screw
8.  1 - 5/8" x 2"               bolt
9.  1 - 5/8"                     square nut
10. 1 - 1/4" x 3"               round rod

     Stake
11. 1 - 5/8" x 12"              round rod
12. 1 - 3/8" x 3"               flat bar

     Taget Plate
13. 1 - 3/8" x 12" x 12"      AR 360 steel plate. any shape at about 12" x 12"

       Reset Linkage
14. 1 - 1/4"                    kwik link
15. 1 - 1/4" x 30"             chain
16. 1 -                          swivel snap
17. 1 - 1/4" x ?                rope
